Powertank COFFIN 200 Simplicity
£700.00 Excluding VAT£840.00 Including VAT
System Connections:
Inlet: 1/2″ BSP
Outlet: 1″ BSP
Overflow: 1 1/4″ BSP
Drain Off: 1″ BSP
Technical Info:
Power Supply: 240V, 50Hz
Controller: Presflo
Mains Power Cable: 2m x 1mm ² 3 core fitted with 13 amp fuse mains plug
Current Input: 3.4 amp
Tank Weight Full 1ltr = 1 kg plus weight of empty tank
Tank Size: 200 – 500L
The Powertank will produce
40 litres per min @ 3 Bar
NOTE: A minimum of 0.5 bar incoming pressure is required for our Standard Fill Valve
You have:
* A property without enough pressure and/or flow for your requirements
* A pressurised hot water system ie. a Combi Boiler, Megaflow or Direct unvented Hot Water system
You want:
* Water on demand
* More pressure and flow from your shower
* Good flow of pressure to multiple water outlets
* Fully Automatic Operation
* Low Maintenance
* Easy Fit and Commission
* Very Quiet compared to other Systems
BENEFITS of the Powertank Simplicity
Water on Demand
Good Pressure & Flow to all Outlets*
Low Maintenance
Very Quiet Operation
Energy Saving Options
Installer Friendly Design
Fully Automatic Operation
In Built Pump Protection
Description

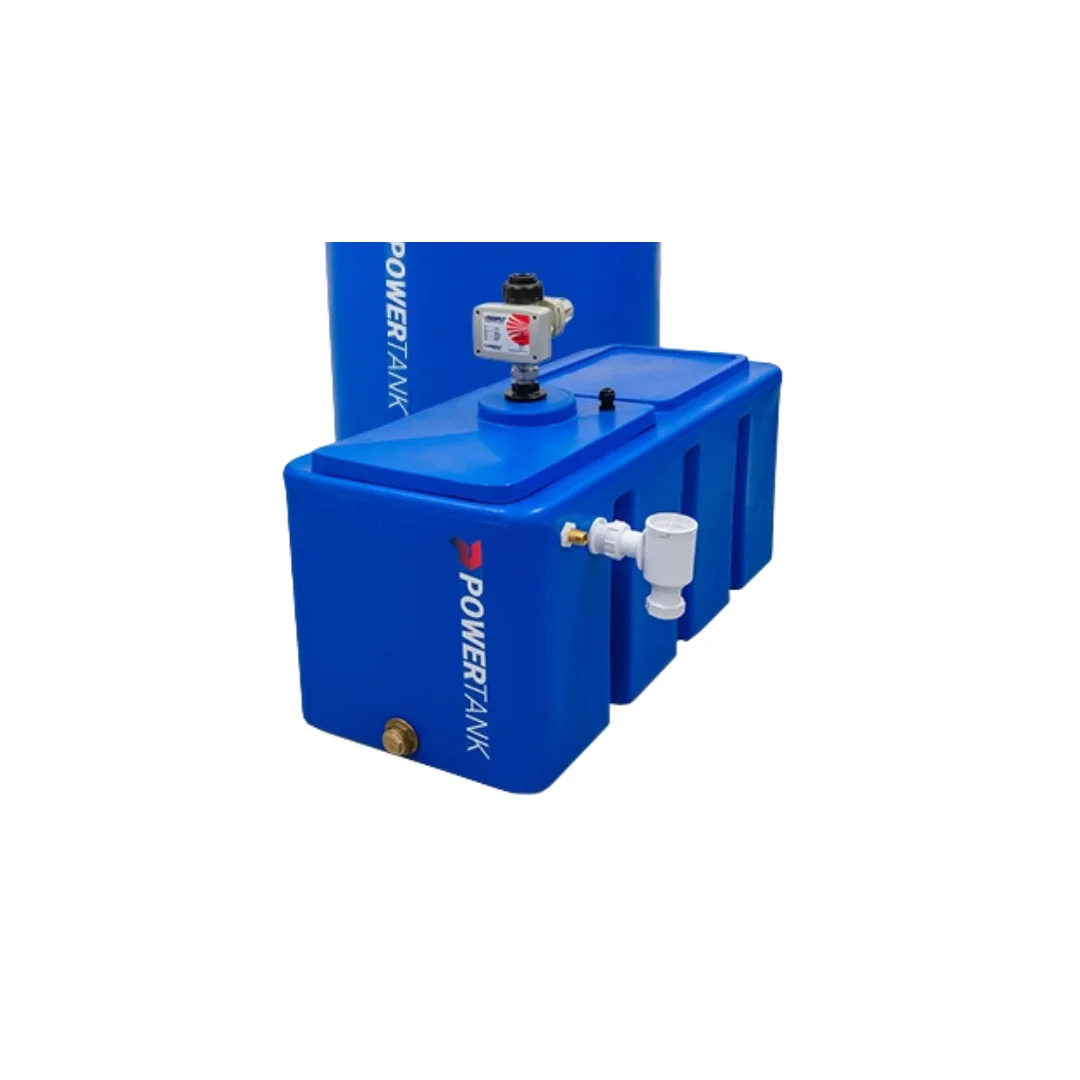

Powertank Simplicity Coffin 200– Fixed Speed Commercial Water Pressure Booster
The Powertank Simplicity range is designed to boost low water pressure and flow and is available in a range of tank shapes and capacities. Providing around 40 litres per minute at 3 bar, it is electronically controlled through a flow switch unit which starts and stops the pump automatically when a tap is opened and closed.
A pressure vessel is required to be added to the system to protect the pump from water hammer and to ensure that the pump does not turn on every time that water is required.
The Simplicity range provides a lower-cost water-boosting option than the standard Powertank range and comes with a 1-year warranty.
Unlike the standard Fixed Speed Powertank the Simplicity range controller does not feature an integrated 3ltr pressure vessel for reducing the number of pump start & stops and does not have an adjustable start pressure.
Key Features:
– Non-corrosive holding tank (WRAS approved material)
– Designed for potable water
– Pre-fitted WRAS approved fill valve
– Protective lid enclosure (Optional)
– Minimal installation requirement
– Adjustable digital display flow controller (Variable Speed Option)
– Dry run protection with auto restart (time delay)
– AF Air gap
– Suitable for up to Fluid Category 4
